3 wires MINI PHOTOCONTROL CX1-2401EL

Contact Us>
CX1-2401EL outdoor lighting automatic photocell is designed and manufactured in accordance with ANSI C136.10 and UL773A standards. It employs multi-voltage technology to save inventory space. With delayed-on and delayed-off functions, it effectively prevents false operations caused by short-term fluctuations in ambient brightness.capable of handling a maximum load of 2A @E-Ballast. It features a compact size for easy installation and is widely used for automatic control of high-power LED lights.

Technical Data



Rated V.

120/208/220/240/277Vac  50/60Hz

Rated  Load

 0.5A@E-Ballast ，TRIAC

Power dissipation

< 0.5@120V avg

Surge protection

 Requirement

Turn-on  Levels

<25Lux

OFF/ON Ratio

3：1  or Requirement

Time Delay

<30S

IP

Housing ：IP54, IP65; Borrow light： IP66

Fail Model

 Fail OFF

Switch Times

> 5000 Times

Light Sensor

∅5MM CDS or Silicon Photoresistor

Cover Material

PC

Cap Material

PC  UL94-V2  F1 UV resistant

Power Wire

18AWG  UL1015

Ambient Temp.

-30～70℃

Insulation

3000V 60Hz  60s

Certificate

CE  UL

Warranty

3years

Boundary dimension

55*33*12mm



Installation



installed by an electrician.

●Maintenance and replacement installation: Turn off the power, fold off the bad photocell, replace a new photocell and connect the wire and do a good job of insulation. Note that the top of the photocell must point to the ground.

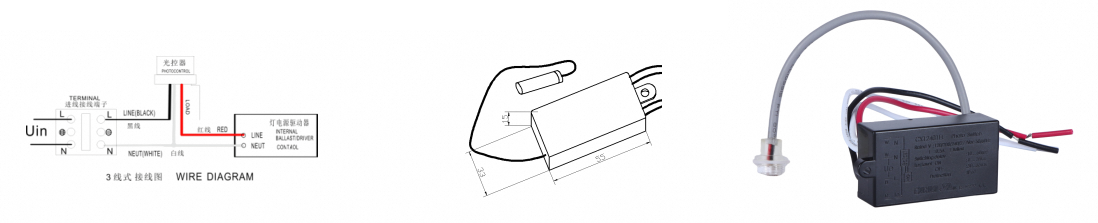

●New installation: First of all, install the optical controller correctly according to the requirements, and then connect the wiring correctly according to the wiring diagram, and then power on after confirming the connection.

●TEST

After confirming that the connection is correct, turn on the power and the photocell will light up for about 30s and then turn off first. If it is during the day, use a black bag to cover the photocell, the light will turn on after 60s, remove the bag light will turn off after 60s.
